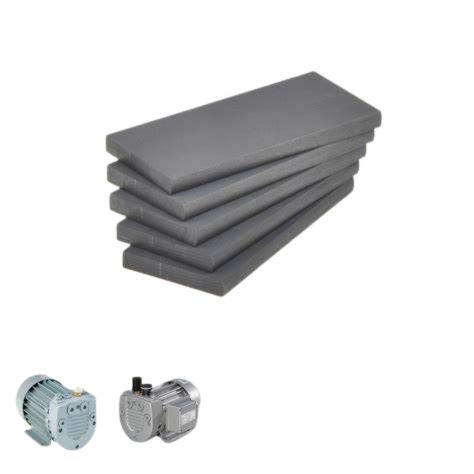

Premium Graphite Carbon Vanes/Blades – Custom Sizes (L×W×T) – For Becker/Rietschle Pumps & Compressors

High-performance graphite carbon vanes for industrial applications. Custom sizes available (submit drawings). Suitable for fuel transfer pumps, vacuum systems, and medical equipment. Self-lubricating with excellent thermal stability.

Carbon Brush Detials

Premium Graphite Carbon Vanes/Blades – Custom Sizes (L×W×T) – For Becker/Rietschle Pumps & Compressors

✅ Product Specifications

Material Options

Type Properties Best For
Pure Carbon Graphite Self-lubricating, food-grade compatible Pharmaceutical applications
Metal-Impregnated High strength, oil-free operation Diesel fuel pumps
Resin-Bonded Thermal shock resistant High-temperature compressors

Standard Sizes Available
(Custom sizes upon request)

Ref # Dimensions (L×W×T mm) Set Code Compatible Machines Pcs/Set
1# 220×88×6.0 901373 Becker DTLF 500/VTLF 500 10
3# 95.2×57×6.0 Rietschle TR 80 DV 7
6# 130×52×5.0 533851-506382 Rietschle KTA 80/2 6
22# 170×39×4.0 901330 Becker KDT 2.80/KVT 3.80 4
35# 135×39×4.0 901329 Becker DVT 2.60/KDT 2.60 8
50# 63×43×4.0 901349 Becker VT 4.25/DT 3.25 7

Full compatibility list covers 66+ standard sizes


✅ Key Features

✔ Self-Lubricating – Operates dry or with poor lubricants (petrol/diesel)
✔ Low Wear Rate – 3x longer lifespan than metal vanes
✔ Thermal Stable – Withstands -200°C to +500°C
✔ FDA-Compliant – Safe for food/pharmaceutical use
✔ Customizable – Submit drawings for special dimensions


✅ Technical Advantages

Parameter Carbon Graphite Metal Vanes
Coefficient of Friction 0.1-0.3 0.5-0.8
Thermal Expansion 4.5×10⁻⁶/°C 12×10⁻⁶/°C
Max PV Value 50,000 psi-fpm 30,000 psi-fpm
Noise Level 15dB lower Baseline

✅ Applications

Industrial
• Vacuum pumps for printing presses
• Fuel transfer pumps (diesel/petrol)
• Medical air compressors

Commercial
• Drink vending machines
• Food processing equipment
• Automotive fuel pumps

Specialty
• Oil burner systems
• Breathing air supplies
• Spray painting equipment


✅ Ordering Information

  1. For Standard Sizes:

    • Provide Ref # from table (e.g., “Order 3# for Rietschle TR 80 DV”)

  2. Custom Sizes:

    • Submit:
      ✓ Drawing with L×W×T dimensions
      ✓ Fluid being pumped (air/water/fuel)
      ✓ Operating temperature range

  3. Replacement Guidance:

    • Measure worn vanes and subtract 0.5mm from each dimension

    • Include machine model number from nameplate
