MAKITA CB325
-
📏 Size: 5 × 11 × 16 mm
Standard fit for a wide range of Makita grinders, rotary hammers, and die grinders. -
🔌 OEM Part Numbers:
194074-2 / 6433255 -
⚙️ High-Performance Carbon Material:
Delivers stable conductivity, reduced wear, and longer brush life. -
🧰 Compatible Tools Include:
9554NB, 9553NB, 9557PB, HR2470F, HR2811F, BHR202, GD0600, GD0601, and more. -
🎯 Ideal for Replacements and Maintenance
Ensures motor protection and smooth power transmission in heavy-duty use.
Additional information
| size | 5*11*16mm |
|---|---|
| code | 194074-2/6433255 |
Carbon Brush Detials

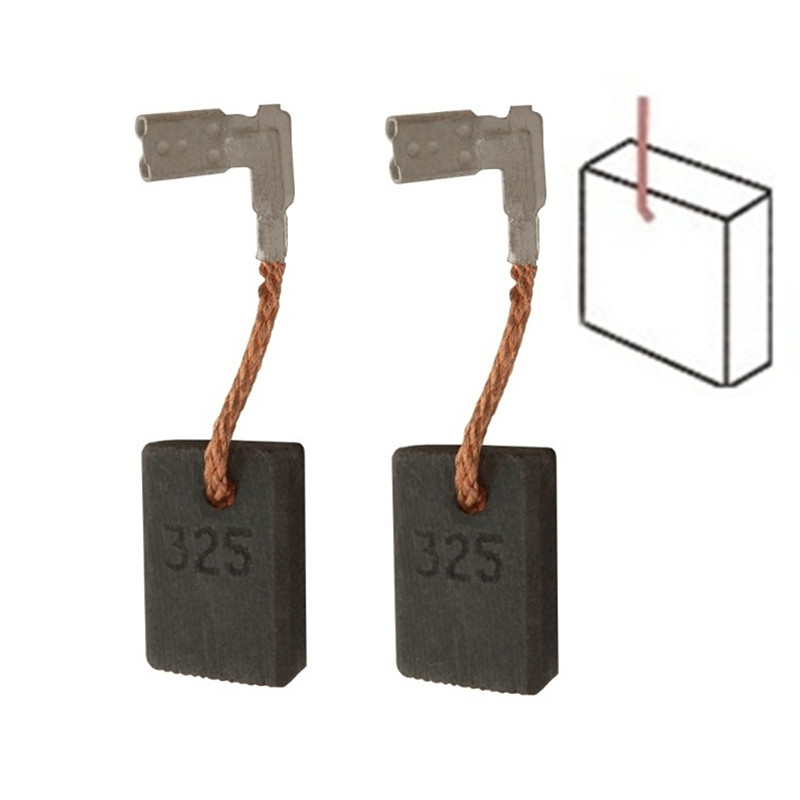

Makita CB325 Carbon Brush is designed for use in a broad range of professional-grade Makita tools, including angle grinders, rotary hammers, and die grinders. It features a standard 5 × 11 × 16 mm form factor and is a direct replacement for OEM part numbers 194074-2 and 6433255.
This brush is made from high-purity carbon graphite, finished with precision-ground edges and copper-core lead wire to provide consistent power transfer and reduce arc wear. It’s thermally treated via a high-temperature net belt furnace process, which improves durability and minimizes carbon dust.
Whether you’re servicing a 9554NB grinder or replacing brushes on a BHR202 cordless rotary hammer, the CB325 ensures OEM-level reliability and performance.
| Specification | Details |
|---|---|
| Model | CB325 |
| Size | 5 × 11 × 16 mm |
| OEM Code | 194074-2 / 6433255 |
| Material | High-density carbon graphite |
| Finish | Fine grind, copper wire, stable seating |
| Compatible Tools | 9554NB, 9553NB, 9557PB, 9557NB, 9558PB, HR2470F, HR2811F, BHR202, GD0600, GD0601 |
| Applications | Grinder, Die Grinder, SDS Rotary Hammer |
